Great VE-7 Images

     While researching Vought aircraft at NARA II, I came across these great images, It is a Vought VE-7 uncovered and uncowled sitting on the airfield at Dayton. It gives a great view into how thing are arranged and the various wires and supports used in biplane construction.

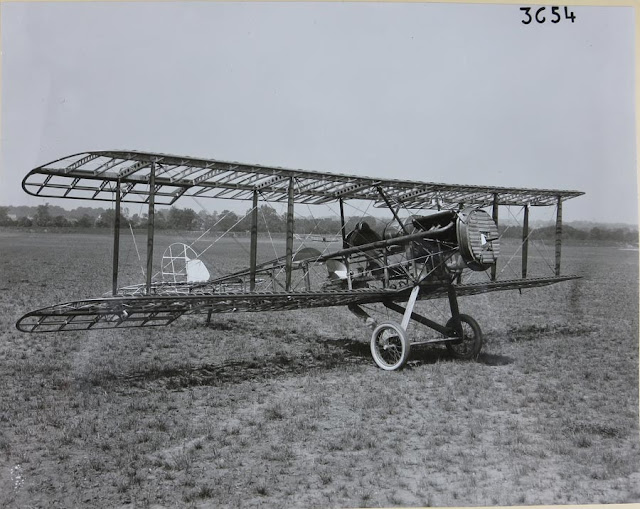

342FH-B3246-Vought VE-7 Uncovered Right Front View
342FH-B3248-Vought VE-7 Uncovered Right Side View
